Rotary Potentiometer RV16801NS
| Place of Origin: | China |
|---|---|
| Brand Name: | SANNI |
| Model Number: | RV16801NS |
| Minimum Order Quantity: | 2000PCS |
| Price: | USD0.25~0.45 per pc |
| Packaging Details: | 2000PCS/BOX |
| Delivery Time: | 25 Working days |
| Payment Terms: | T/T |
| Supply Ability: | 30000pcs/Month |
Products Details：
| Model NO.: | RV16801NS | Shape: | Round |
|---|---|---|---|
| Mounting Direction: | Vertical | Switch: | SPST |
| Specification: | 16mm | Installation: | PCB DIP Mounting |
| Customization: | Available | Customized Request | ||
| Highlight: | Rotary Potentiometer Round, Rotary Potentiometer Vertical, Rotary Switch Round Potentiometer | ||

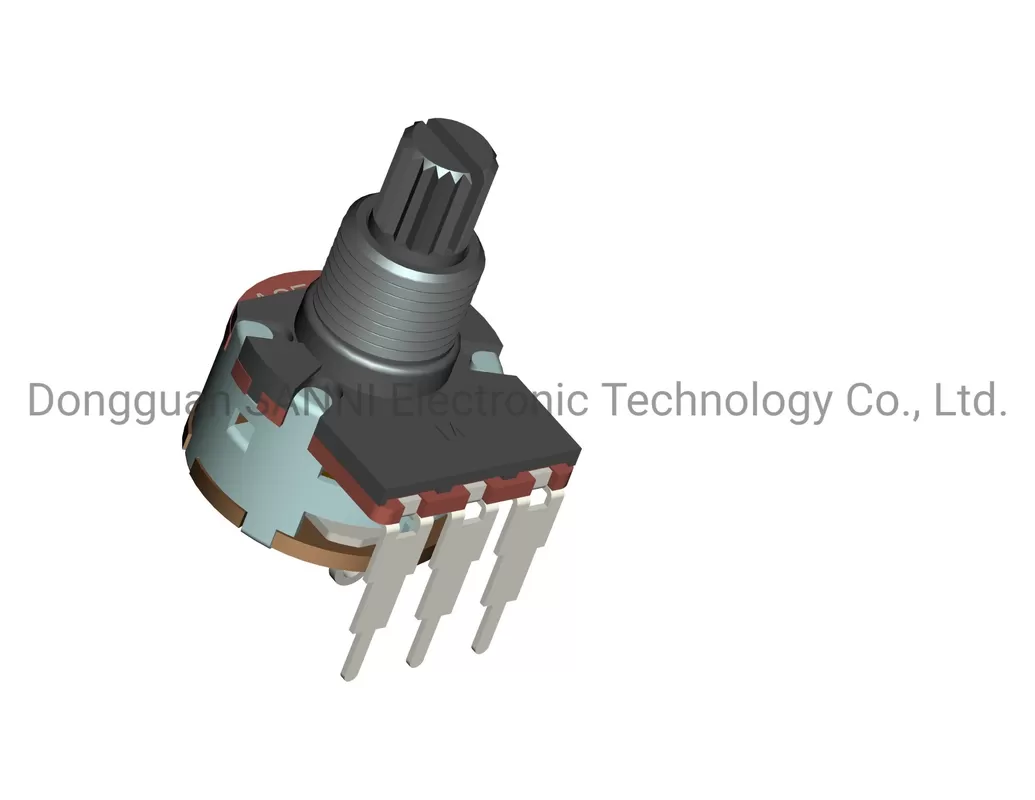

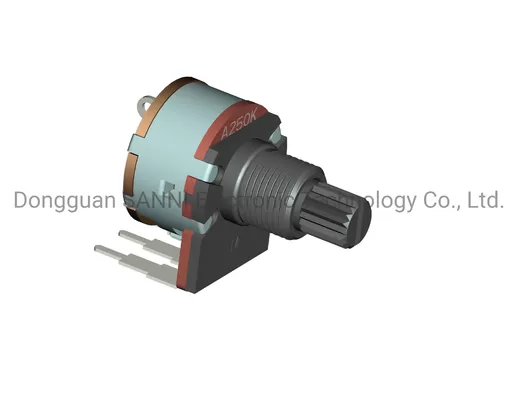

RV16801NS Metal Shaft Rotary Potentiometer with Rotary Switch
Application of Rotary Potentiometer
Rotary Potentiometer is mainly suitable for communication products, walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances, medical equipment, its main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.
Product Specification
| 1.Electrical Characteristics | |
| Total resistance | 500Ω-2MΩ |
| Total resistance tolerance | 50Ω~10KΩ:±30%/10KΩ~500KΩ:±20%/500KΩ~2MΩ:±30% |
| Residual resistance | R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less |
| Rated Power | Linear taper:0.05W, Audio Taper 0.025W |
| Insulation resistance | 100MΩ min. 250V DC |
| Voltage proof | 250V AC for 1 minute |
| Maximum operation voltage | 50V AC/10V DC |
| 2.Mechanical Characteristics | |
| Rotation stopper strength | Min:6.0Kgf |
| Total rotation angle | 300o±5o |
| Totational torque | 20-200gf.cm |
| Key push-pull strength | Min:8Kgf |
| Vibration | 10 to 55 to 10Hz/min.the amplitude is 1.5mm for all the frequencies in the 3 direction of X.Y an Z and for 2 hours respectively. |
| Terminal Strength | 5N for 1 minute |
| 3.Switch Characteristics | |
| Switch Type | SPST |
| Rated Power | 1A 16V DC |
| Switch Torque | 500gf.cm Max |
| Switch Angle | 40o Max |
| Operating Life without load | 15000 cycles 100mΩ Max |
| Operating life with load:as rating | 15000 cycles 200mΩ Max |
| Initial contact resistance | 100mΩ Max |
| Insulation resistance | 100MΩ min. 250V DC |
| Voltage proof | 300V AC for 1 minute |
| 4.Environmental Performance | |
| Operating temperature range | -10oC to +70oC |
| Storage temperature range | -40oC to +85oC |
| 5.Welding heat reference | |
| Reference for hand soldering | 260oC-280oC±10oC/3+1S |
