Rotary Potentiometer
| Place of Origin: | China |
|---|---|
| Brand Name: | SANNI |
| Model Number: | RV931AN0 |
| Minimum Order Quantity: | 2000PCS |
| Price: | USD0.2~0.3 per pc |
| Packaging Details: | 2000PCS/BOX |
| Delivery Time: | 25 Working days |
| Payment Terms: | T/T |
| Supply Ability: | 30000pcs/Month |
Products Details：
| Shape: | Square | Resistance Change Scale: | Log Or Linear |
|---|---|---|---|
| Brand: | Sanni | Shaft Material: | Metal |
| Shaft Type: | Knurled/D Type/Solid/Customize | Installation: | DIP PCB Mount |
| Base Material: | ABS/PC | Customization: | Available | Customized Request |
| Highlight: | Rotary Vertical PCB Mount Potentiometer,
Vertical PCB Mount Potentiometer Metal, Sealed vertical potentiometer |
||

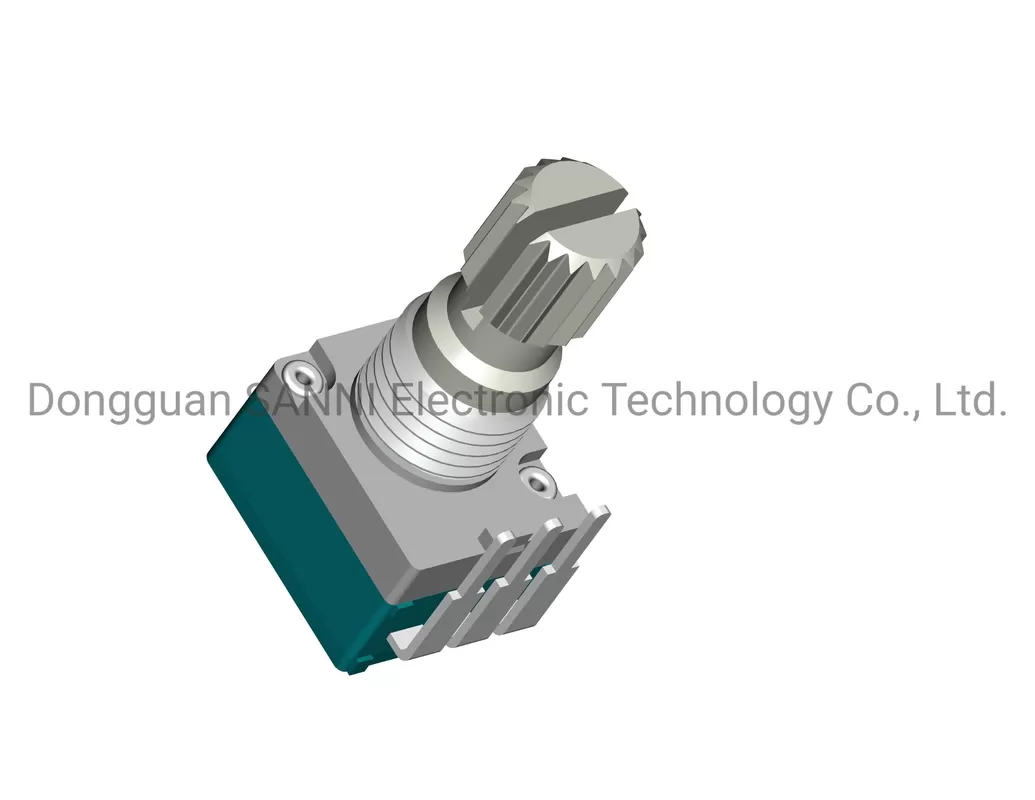

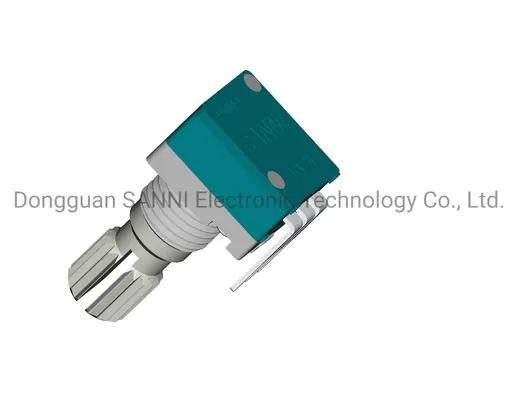

RV931AN0 Rotary Potentiometer Metal Shaft Sealed Vertical Type Potentiometer
Description of Rotary Potentiometer
The rotating potentiometer is an adjustable electrical resistor, which wipes on the resistors by the wiper, and obtains the output voltage associated with the input voltage in the circuit.
Features of Rotary Potentiometer
Good sealing performance
Using plastic sealing structure, can effectively deal with wave welding.
Push-pull switch or rotating switch can be chosen.
Can be with positioning.
Shaft length and shape can be adjusted.
A variety of mounting methods for choice.
Product Specification
| 1.Electrical Characteristics | |
| Total resistance | 200Ω-2MΩ |
| Total resistance tolerance | 200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30% |
| Insulation resistance | 100MΩ min. 250V DC |
| Residual resistance | 20ΩMax. |
| Rated Power | Linear taper:0.05W, Audio Taper 0.025W |
| Noise | 100mV Max |
| Voltage proof | 100V AC for 1 minute |
| Maximum operation voltage | 50V AC/20V DC |
| Gang error applicable for Dual unit parts for audio volume control purposes | -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.) |
| 2.Mechanical Characteristics | |
| Rotation stopper strength | Min:4Kgf |
| Total rotation angle | 300o±5o |
| Totational torque | 10-150gf.cm |
| Key push-pull strength | Min:8Kgf |
| Terminal Strength | 5N for 1 minute |
| Key Wobble | Max: 0.6*L/20mm P-P |
| 4.Environmental Performance | |
| Operating temperature range | -10oC to +70oC |
| Storage temperature range | -40oC to +85oC |
| 5.Welding heat reference | |
| Manual Soldering | 350oC±10oC/3+1S |
| Wave Soldering | 260oC±5oC/10±1S |
Our Advantage
1. More than 10 years of experience in research and development production design.
2. 10+ dedicated and experienced engineers and designers in R&D department.
3. 9 automation production lines, more than 100 experienced workers for higher precision products.
4. Professional Testing instruments and team to ensure product quality.
5. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
Related Products
Related products
FAQ
What information do you need if we want to order with our own design?
Tell us your requirement or provide your design in JPG, doc, AI, cdr or PDF format. Our professional designer will work out a 3D drawing for your final approval/confirmation.
Can i get a sample?
Of course. it’s our pleasure to provide samples to you for testing. Normal samples for free. If you want to get customized samples, we will charge a little. However, samples charge will be refunded when you place an order.
What is your MOQ?
Our normal product MOQ 3000 PCS, if we have stock, just 500 pcs .depend on the item and design you want .just send us inquiry.
What colors are avaiable for coating or painting?
We match colors with Pantone Matching System. So you can just tell us the Pantone color code you need. We will match the colors. If you have no idea on Pantone code, we will recommend some popular colors to you.
What is your payment term?
T/T 30% deposit and 70% balance payment before shipment,or T/T 30% deposit after order signed and 70% against copy of B/L.
How long is the production lead time?
Normally 30 days for MOQ order. if big quantity, we need to double-check the time before order.
Could we visit your office or factory?
Sure ,we are willing to invite you to visit our office or factory ,just let us know your available time and contact us.
Can you help us to develop our own products?
ODM and OEM project is welcome. We have professional team for doing ODM and OEM project. Please contact us to discuss more details.
