Rotary Potentiometer 16mm Plastic
| Place of Origin: | China |
|---|---|
| Brand Name: | SANNI |
| Minimum Order Quantity: | 2000PCS |
| Price: | USD0.25~0.35 per pc |
| Packaging Details: | 2000PCS/BOX |
| Delivery Time: | 25 Working days |
| Payment Terms: | T/T |
| Supply Ability: | 30000pcs/Month |
Products Details：
| Model NO.: | RV16801NS | Shape: | Square |
|---|---|---|---|
| Application: | Audio | Switch: | Rotary |
| Transport Package: | Carton Boxes | Specification: | 16mm |
| Trademark: | SANNI | Origin: | China |
| Resistance: | Variable Resistor | Function For Resistance: | Load Resistor |
| Material: | Carbon Film Resistor | Packaging: | Throught Hole |
| Type: | Rotary Potentiometer | Customization: | Available | Customized Request |
| Highlight: | Plastic Shaft Potentiometer 16mm, Horizontal Plastic Shaft Potentiometer, Potentiometer 16mm Rotary | ||

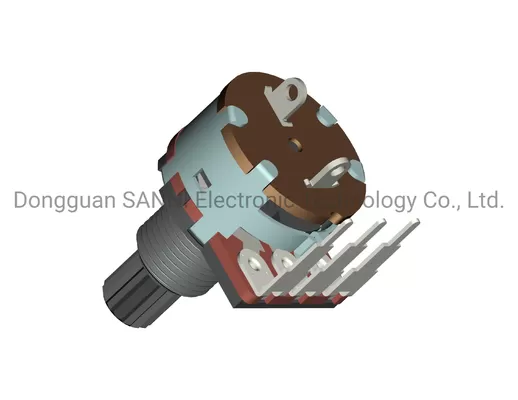

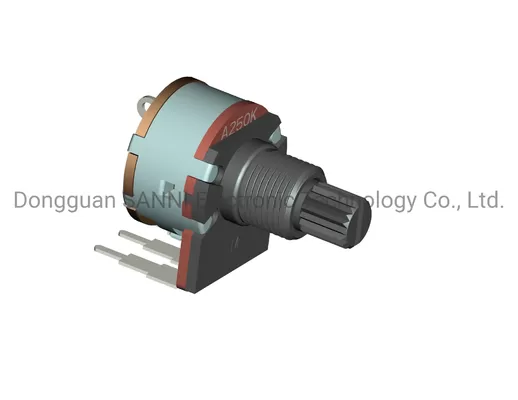

RV16801NS Rotary Potentiometer 16mm Plastic Shaft Potentiometer With Rotary Switch
Application of Rotary Potentiometer
Rotary Potentiometer is mainly suitable for communication products, automobile power amplifier,multimedia audio, and other electronic equipment, but also can use medical equipment, household appliances.It’s main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.
Features of Rotary Potentiometer
Good sealing performance
Using plastic sealing structure, can effectively deal with wave welding.
Push-pull switch or rotating switch can be chosen.
Can be with positioning.
Shaft length and shape can be adjusted.
A variety of mounting methods for choice.
Specification of Rotary Potentiometer
| 1.Mechanical Characteristics | |
| Rotation stopper strength | Min:6.0Kgf |
| Total rotation angle | 300o±5o |
| Totational torque | 20-200gf.cm |
| Key push-pull strength | Min:8Kgf |
| Vibration | 10 to 55 to 10Hz/min.the amplitude is 1.5mm for all the frequencies in the 3 direction of X.Y an Z and for 2 hours respectively. |
| Terminal Strength | 5N for 1 minute |
| 2.Electrical Characteristics | |
| Total resistance | 500Ω-2MΩ |
| Total resistance tolerance | 50Ω~10KΩ:±30%/10KΩ~500KΩ:±20%/500KΩ~2MΩ:±30% |
| Residual resistance | R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less |
| Rated Power | Linear taper:0.05W, Audio Taper 0.025W |
| Insulation resistance | 100MΩ min. 250V DC |
| Voltage proof | 250V AC for 1 minute |
| Maximum operation voltage | 50V AC/10V DC |
| 3.Switch Characteristics | |
| Switch Type | SPST |
| Rated Power | 1A 16V DC |
| Switch Torque | 500gf.cm Max |
| Switch Angle | 40o Max |
| Operating Life without load | 15000 cycles 100mΩ Max |
| Operating life with load:as rating | 15000 cycles 200mΩ Max |
| Initial contact resistance | 100mΩ Max |
| Insulation resistance | 100MΩ min. 250V DC |
| Voltage proof | 300V AC for 1 minute |
| 4.Environmental Performance | |
| Operating temperature range | -10oC to +70oC |
| Storage temperature range | -40oC to +85oC |
| 5.Welding heat reference | |
| Reference for hand soldering | 260oC-280oC±10oC/3+1S |
Our Advantage
1. More than 10 years of experience in research and development production design.
2. 10+ dedicated and experienced engineers and designers in R&D department.
3. 9 automation production lines, more than 100 experienced workers for higher precision products.
4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
5. Professional Testing instruments and team to ensure product quality.
Related Products
Related products
FAQ
What information do you need if we want to order with our own design?
Tell us your requirement or provide your design in JPG, doc, AI, cdr or PDF format. Our professional designer will work out a 3D drawing for your final approval/confirmation.
Can i get a sample?
Of course. it’s our pleasure to provide samples to you for testing. Normal samples for free. If you want to get customized samples, we will charge a little. However, samples charge will be refunded when you place an order.
What is your MOQ?
Our normal product MOQ 3000 PCS, if we have stock, just 500 pcs .depend on the item and design you want .just send us inquiry.
What colors are avaiable for coating or painting?
We match colors with Pantone Matching System. So you can just tell us the Pantone color code you need. We will match the colors. If you have no idea on Pantone code, we will recommend some popular colors to you.
What is your payment term?
T/T 30% deposit and 70% balance payment before shipment,or T/T 30% deposit after order signed and 70% against copy of B/L.
How long is the production lead time?
Normally 30 days for MOQ order. if big quantity, we need to double-check the time before order.
Could we visit your office or factory?
Sure ,we are willing to invite you to visit our office or factory ,just let us know your available time and contact us.
Can you help us to develop our own products?
ODM and OEM project is welcome. We have professional team for doing ODM and OEM project. Please contact us to discuss more details.
