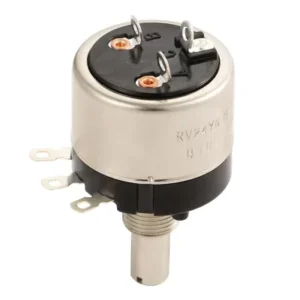

Rotary Potentiometer
| Place of Origin: | China |
|---|---|
| Brand Name: | SANNI |
| Certification: | ISO9001 |
| Model Number: | RV24YG25SA104 |
| Minimum Order Quantity: | 2000 PCS |
| Price: | USD 6 ~ USD 7.5 per pc |
| Packaging Details: | 2000 PCS / BOX |
| Delivery Time: | 25 Working Days |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs / Month |
| Model NO.: | RV24YG25SA104 | Mount Direction: | Horizontal |
|---|---|---|---|
| Shell Material: | Brass With Nickel Plating | Base Material: | ABS Black |
| Terminal: | Copper With Silver Plating | Customization: | Available | Customized Request |
| Highlight: |
Dual Unit Rotary Type PotentiometerMedical Rotary Type PotentiometerRV24YG25SA104 Potentiometer |
||
Products Details：
| Model NO.: | RV24YG25SA104 | Mount Direction: | Horizontal |
|---|---|---|---|
| Shell Material: | Brass With Nickel Plating | Base Material: | ABS Black |
| Terminal: | Copper With Silver Plating | Customization: | Available | Customized Request |
| Highlight: |
Dual Unit Rotary Type Potentiometer,Medical Rotary Type Potentiometer,RV24YG25SA104 Potentiometer |
||

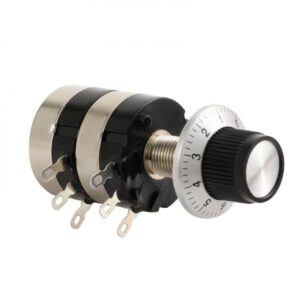

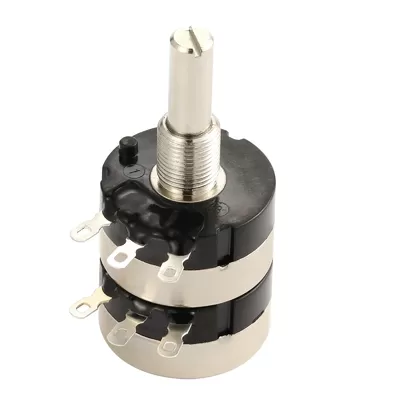

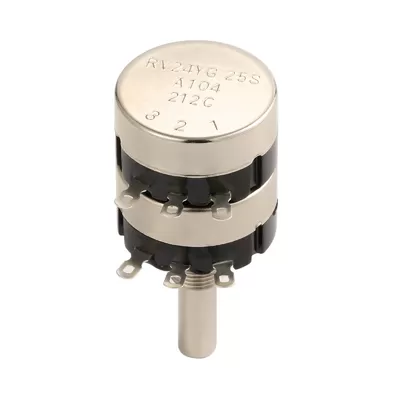

RV24YG25SA104 Rotary Potentiometer Dual Unit For Mechanical And Medical Equipment
Description of Rotary Potentiometer
The rotating potentiometer is an adjustable electrical resistor, which slides on the resistors by the wiper, and obtains the output voltage associated with the input voltage in the circuit.
Application of Rotary Potentiometer
Rotary Potentiometer is mainly suitable for communication products, walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances, medical equipment, its main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.
Specification of Rotary Potentiometer
| 1.Electrical Characteristics | |
| Total resistance | 1KΩ-2MΩ |
| Total resistance tolerance | ±10% |
| Residual resistance | 3Ω Max |
| Rated Power | At 40℃: B :0.4W ／ R ≦ 1kΩ , 0.3W ／ 1kΩ <R ≦ 10kΩ , 0.25W ／ 10kΩ <R |
| A, C :0.2W ／ R ≦ 1kΩ , 0.2W ／ 1kΩ <R ≦ 10kΩ , 0.15W ／ 10kΩ <R | |
| At 85℃ : OW | |
| Insulation resistance | 100MΩ min．(DC 1,000V) |
| Dielctrical proof | AC 1,000V １minute |
| Electrical angle | 280 ± 10° |
| 2.Mechanical Characteristics | |
| Rotation stopper strength | 900N・m min．(9.18kgf・cm min.) |
| Total rotation angle | 300o±5o |
| Totational torque | 5 ～ 30mN・m (51 to 306gf・cm) |
| Key push-pull strength | Min:8Kgf |
| Terminal Strength | 5N for 1 minute |
| 3.Environmental Performance | |
| Operating temperature range | -10oC to +85oC |
| 4.Welding Performance | |
| Reference for hand soldering | 235℃ 5sec. |
Our Advantage
1. More than 10 years of experience in research and development production design.
2. 10+ dedicated and experienced engineers and designers in R&D department.
3. 10 automation production lines, more than 100 experienced workers for higher precision products.
4. Professional Testing instruments and team to ensure product quality.
5. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
FAQ
• Q: Can I get sample from you?
• A: Yes, we can provide the free samples for your testing, please contact us for free and tell us which product you need.
• Q: Do you accept customization?
• A: Yes, customization is acceptable, please contact our sales staffs for consult.
• Q: Can you provide help for technical issues?
• A: Yes, we have more than 10 years of research and development in the electronic potentiometer industry. If you need technical help in the purchase process, please feel free to contact us.
