Rotary Potentiometer Vertical
| Place of Origin: | China |
|---|---|
| Brand Name: | SANNI |
| Model Number: | RV97PFN0 |
| Minimum Order Quantity: | 2000PCS |
| Price: | USD0.2~0.3 per pc |
| Packaging Details: | 2000PCS/BOX |
| Delivery Time: | 25 Working days |
| Payment Terms: | T/T |
| Supply Ability: | 30000pcs/Month |
Products Details：
| Model NO.: | RV97PFN0 | Taper: | Linear Or Log |
|---|---|---|---|
| Brand: | Sanni | Specification: | 9mm |
| Resistance: | 20K，100K，500K Or Customize | Installation: | PCB DIP Mounting |
| Material: | Metal & Plastic | Customization: | Available | Customized Request |
| Highlight: | Rotary Vertical Pcb Mount Potentiometer, Vertical Pcb Mount Potentiometer 9mm, Potentiometer 9mm Single Unit | ||

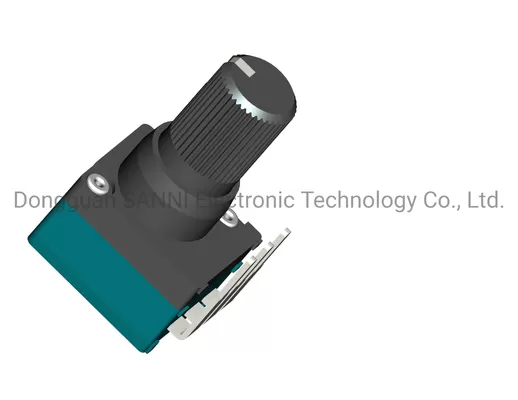

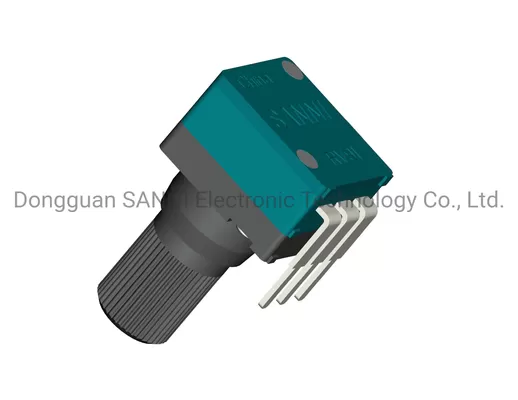

RV97PFN0 Rotary Potentiometer Vertical Type Single Unit Insulated Shaft Sealed Potentiometer
Product Description
- 9mm Insulated shaft sealed potentiometer
- Width: 9.5mm
- Most suitable for car amplifier volume control
- Use:Used for car amplifier, audio amplifier, musical instrument amplifier, guitar effector, mixer, instrument and equipment
Product Features
- Rohs compliant
- Seal type
- Small volume
- Structural diversification
- High Quality
Product Specification
| 1.Mechanical Characteristics | |
| Total rotation angle | 300o±5o |
| Rotation stopper strength | Min:4Kgf |
| Totational torque | 10-150gf.cm CC: click torque: 60-400gf.cm |
| Key push-pull strength | Min:8Kgf |
| Key Wobble | Max: 0.6*L/20mm P-P |
| Terminal Strength | 5N for 1 minute |
| 2.Electrical Characteristics | |
| Total resistance | 100Ω-3MΩ |
| Total resistance tolerance | 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30% |
| Rated Power | 0.05W |
| Residual resistance | R≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less |
| Maximum operation voltage | 50V AC/10V DC |
| Insulation resistance | 100MΩ min. 250V DC |
| Voltage proof | 300V AC for 1 minute |
| 3.Environmental Performance | |
| Operating temperature range | -10oC to +70oC |
| Storage temperature range | -40oC to +85oC |
| 4.Welding Profile | |
| Hand Soldering | 350oC±10oC/3+1S |
| Dip Soldering | 260oC±5oC/10±1S |
Our Advantage
1. More than 10 years of experience in research and development production design.
2. 4 automation production lines, more than 100 experienced workers for higher precision products.
3. 10+ dedicated and experienced engineers and designers in R&D department.
4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.
5. Professional Testing instruments and team to ensure product quality.
